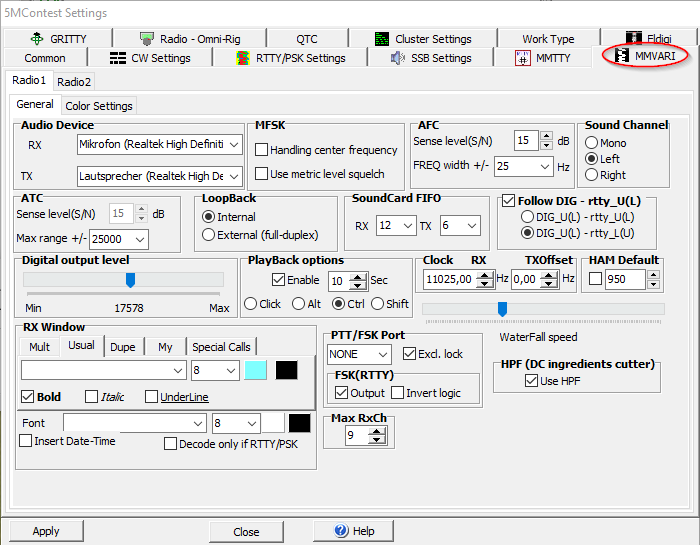

Parameter Group | Parameter | | | | |
Audio Device | | | | | |
MFSK | | | | | |
AFC | | | | | |
Sound Channel | | | | | |
ATC | | | | | |
LoopBack | | | | | |
SoundCard FIFO | | | | | |
Follow DIG - rtty_U(L) | | With most transceiver types, the upper sideband mode of the transceiver coincides with MMVARI’s „_U“ modes. If SSB_U or DIG_U is selected at TRX in combination with e.g. rtty_u in MMVARI the decoded text will be correct. With some transceivers the logic is inverted (maybe caused by errors in the omnirig ini-file). To decode with the TRX at SSB_U the MMVary engine needs to be set to rtty_L. This can be enforced with this setting. | | | |
Digital Output level | | | | | |
PlayBack options | | With Advanced MMVari waterfall (spectrum) window. Menu MMVARI - Advanced View with popup menu (right click) you can add rx channels and show show the last N decoded characters per channel. N is defined through Menu Management-5MContest Settings-MMVARI tab-Radio tab-Color settings tab. „Show RX Channel text hint“ group. PlayBack options are set under MMVARI-General-„PlayBack options“ group. Playback can be enabled, number of seconds of playback and the key combination to start playback when clicking a signal in the waterfall (Click, ALT+Click, CTRL+Click, Shift+Click). When playback is running „Play back“ is displayed in the left bottom corner of the Advanced MMVARI View window | | | |
Clock RX | | | | | |
TXOffset | | | | | |
HAM Default | Ticker | Apply „HAM default“ when executing CQ macro | | | |
| Audio Frequency | Default audio frequency (mid frequency between mark and space) | | | |
WaterFall Speed | | | | | |
| | | | | |
| | | | | |
RX Window | Decode only if RTTY/PSK | If checked for all other Radio 1 window modes (Log Modes) than RTTY/PSK the MMVARI engine does not decode received signals. | | | |
| | | | | |
PTT/FSK Port | | | | | |
| | | | | |
Max RXCh | | | | | |
HPF (DC ingredients cutter) | | | | | |
| | | | | |
